MultiCam 3000 eco 3-head camera

MultiCam 3000 eco digital and high-resolution 3 head gamma camera
Gamma camera the MultiCam 3 head with your accurate and high-resolution visualization properties is particularly suitable for neurological and cardiac
examinations. Also allows you too quickly and elegant high-resolution SPECT-bone images are obtained.

The digital concept causes automatic, Digital Gain control for each individual photomultiplier and computerized query and correction of energy, linearity and
uniformity. This high stability is achieved. The MultiCam 3000 eco- system is equipped with a modem by default , so that detector diagnostics and to make
adjustments due to the digital detection technologies also can be carried out via remote maintenance.

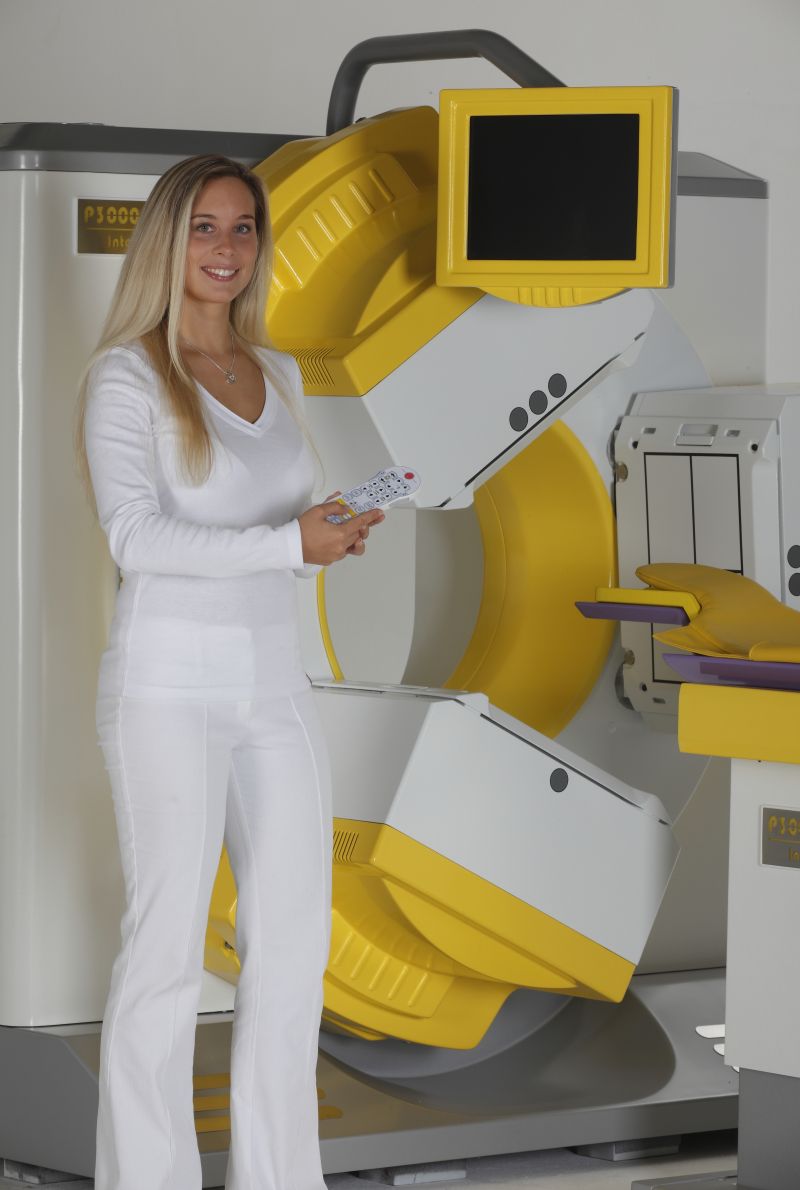

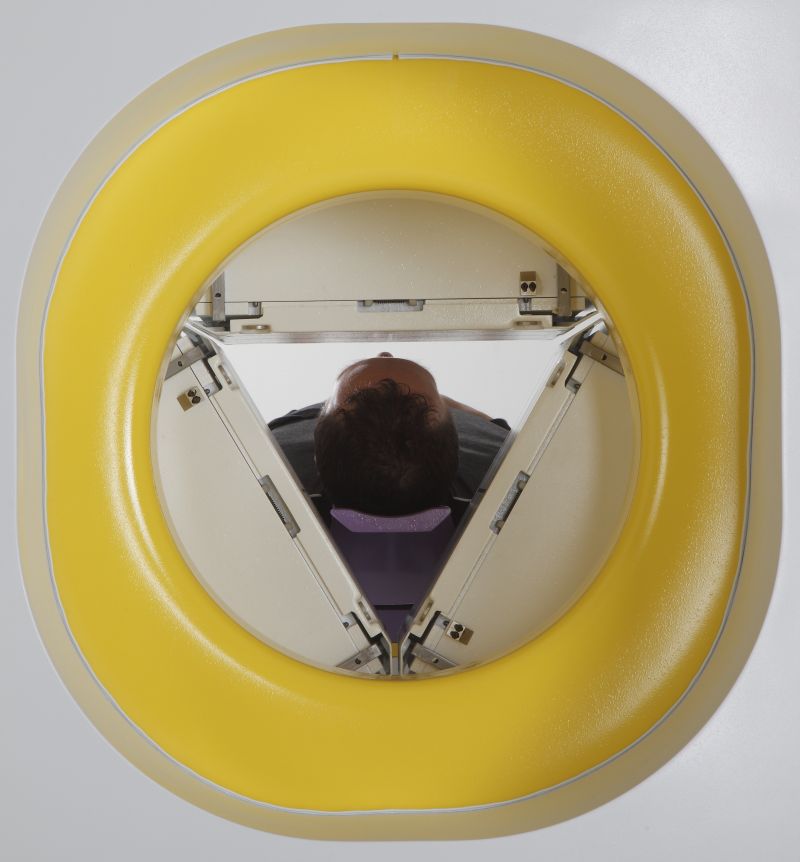

The Ring gantry provides stable detector wreath storage and radial guide. The three detectors 120 ° apart guarantee high adjustment precision and a constant center of rotation. The arrangement of the detectors Gantry tunnels outside the access to the patient is greatly relieved. Moreover, this

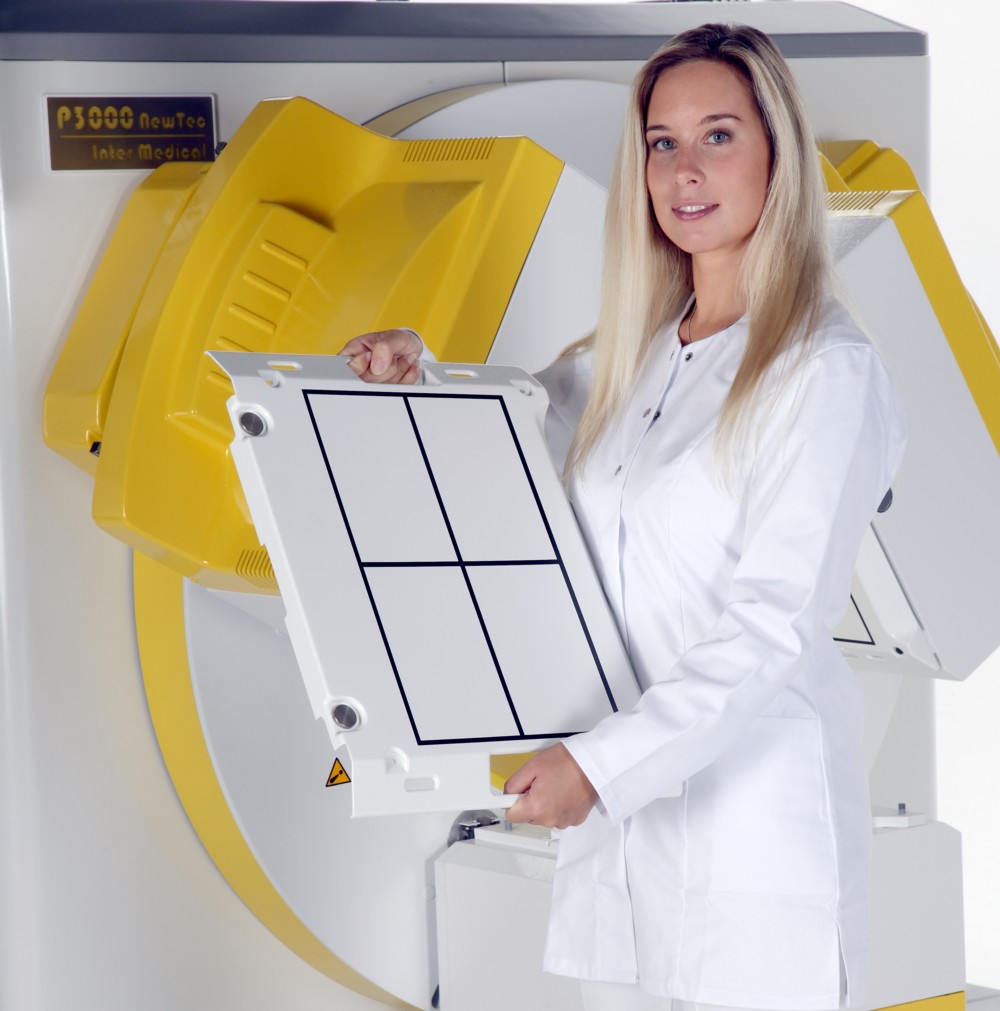

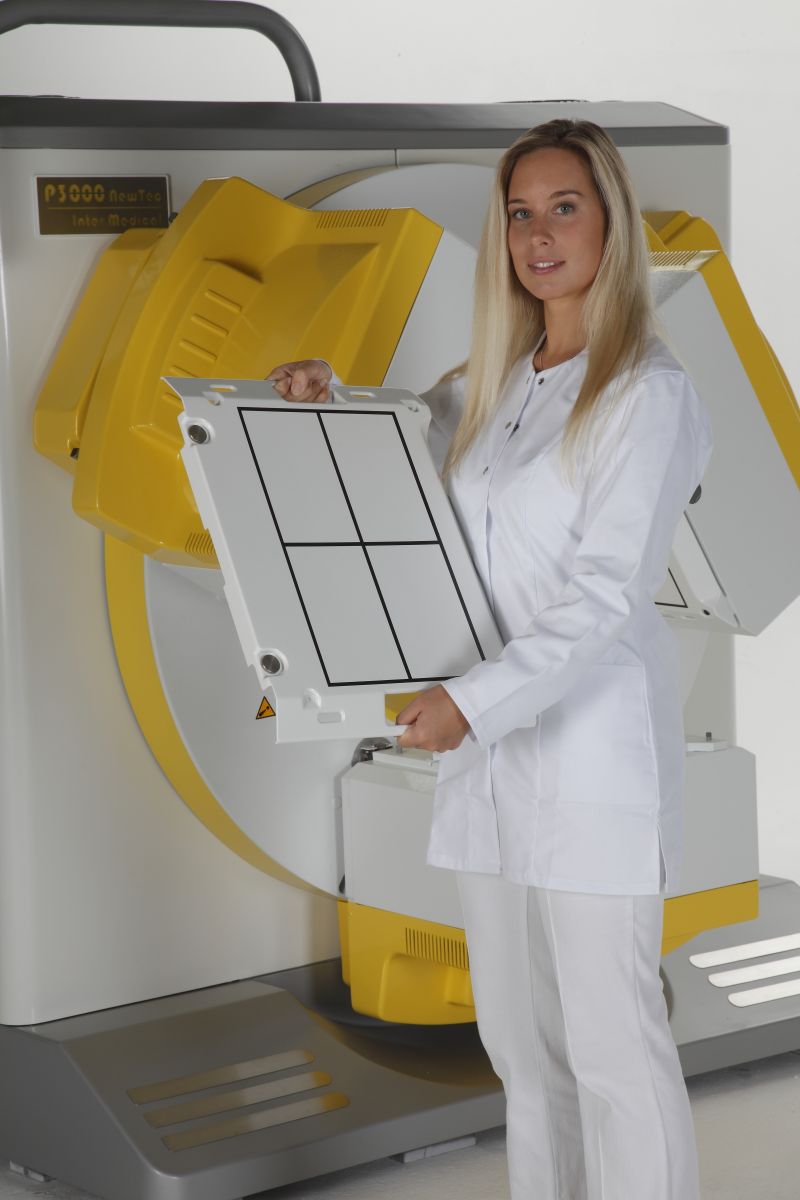

Design principle for adaptation of additional devices (STEP 511 keV collimators, etc.) opens. The Operation of the gantry via a remote control with pre-programmed function keys for brain, torso and collimatorchange and free choice of setting parameters.

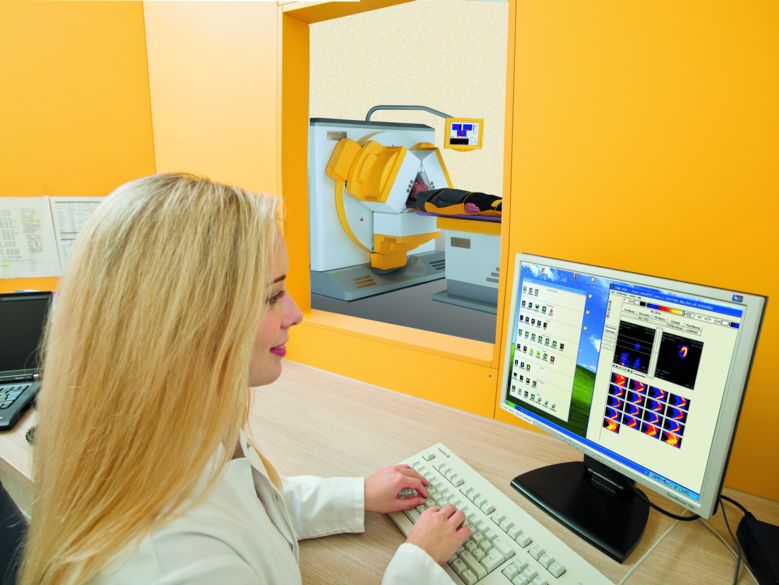

To monitor the patient positioning and adjustment parameters is a large-scale memory monitor the tripod. To monitor the patient positioning and adjustment parameters is a separate Acquisition computer on a driving console. The entire camera can be supplied according to your color requirements be. Here are all standard RAL colors are available.

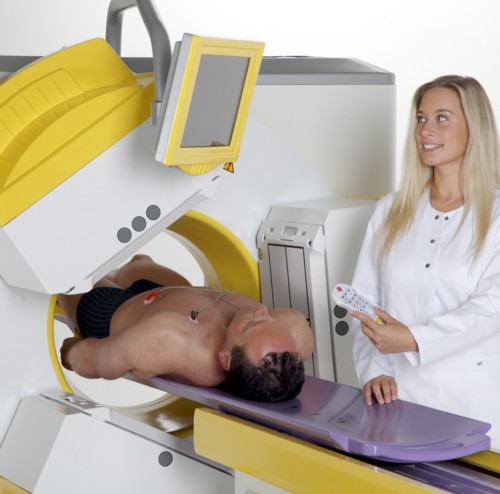

The patient support table is computer controlled and synchronized with the position of the detectors to the longitudinal motion and the lateral and vertical position of the table. Special positioning aids allow convenient positioning of the patient in either head-on or end-position foot.

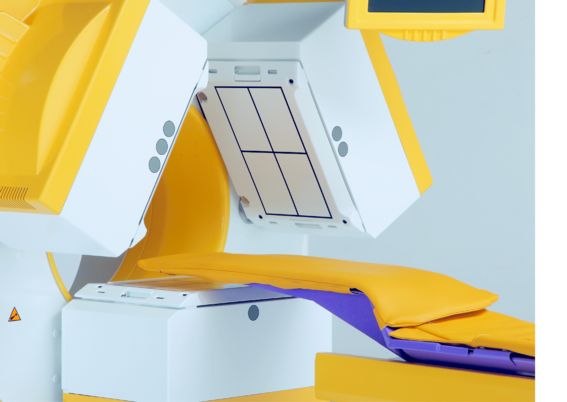

The mounting plate is made of carbon fiber to ensure high stability and low radiation absorption.

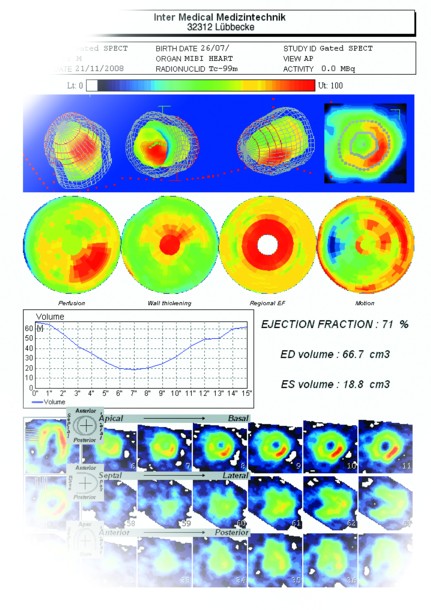

The Feature of the acquisition of control is the remote mode (rapid acquisition sequence) for dynamic SPECT Acquisition. The RAS mode helps significantly in the investigation of uncooperative patients. Within a Study is carried out, the recording of a plurality of complete rotation scans at short intervals in both Directions of rotation. The artifact-free patient data to an optimized set of raw data summarized. The acquisition computer has a 16-Mbyte buffer memory and is a Fiber optic cable linked to the Inter Medical Data System.

The system is characterized by a robust and low-maintenance mechanics. This can be controlled by software via the control electronics all tripod movements.
