Galaxy R single rectangular gamma camera

Galaxy R Single-rectangle camera for universal recordings including whole-body and SPECT

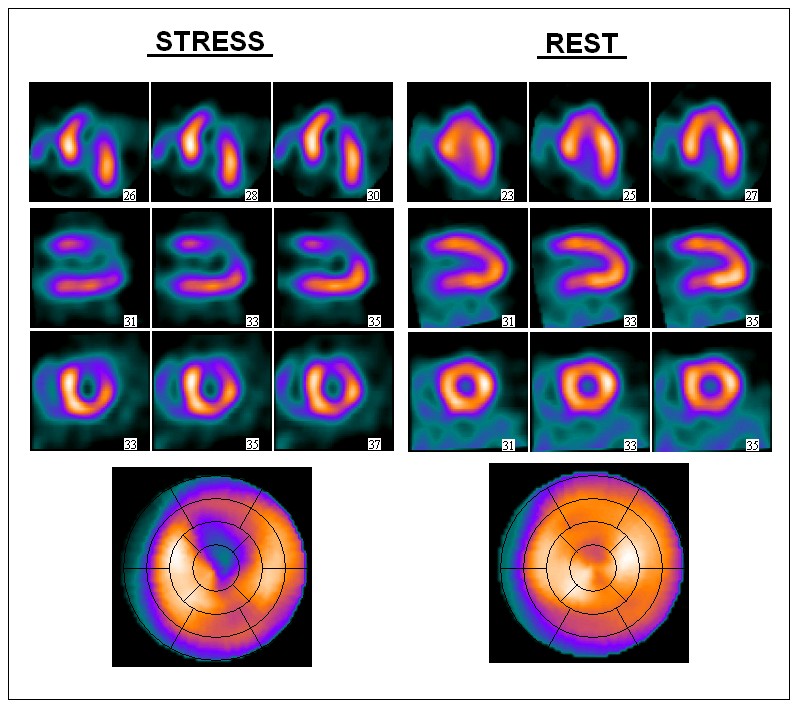

The Galaxy R is a universal rectangular large field gamma camera with a field of view of 54 x 40 cm. Due to the special mounting frame you can Acquire images such as planar-, body-, SPECT and Gated SPECT, also Shooting in the hospital bed or with a trolley are possible without any problem.

The Galaxy R gamma camera allows you upper and lower table-images, even in the whole body and SPECT operation. The state-of-the-art on detector head-LQN-electronics ensures an excellent resolution and uniformity of the patient exposures.

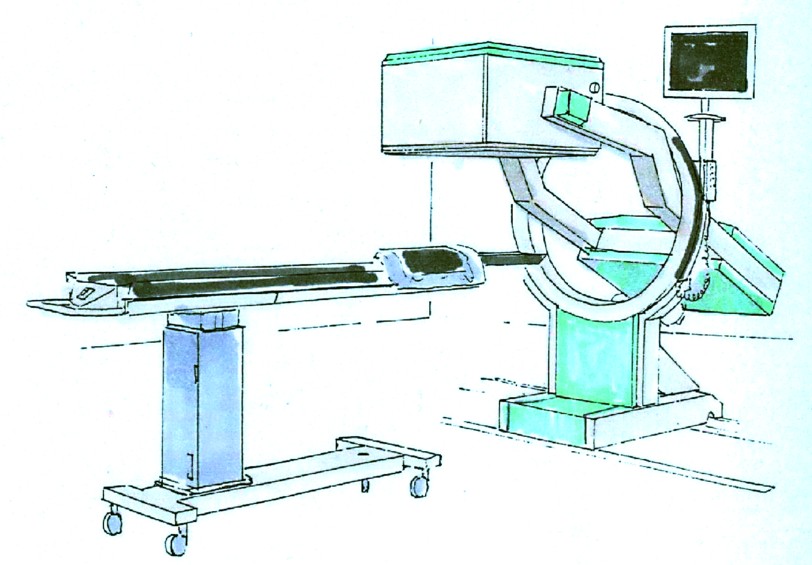

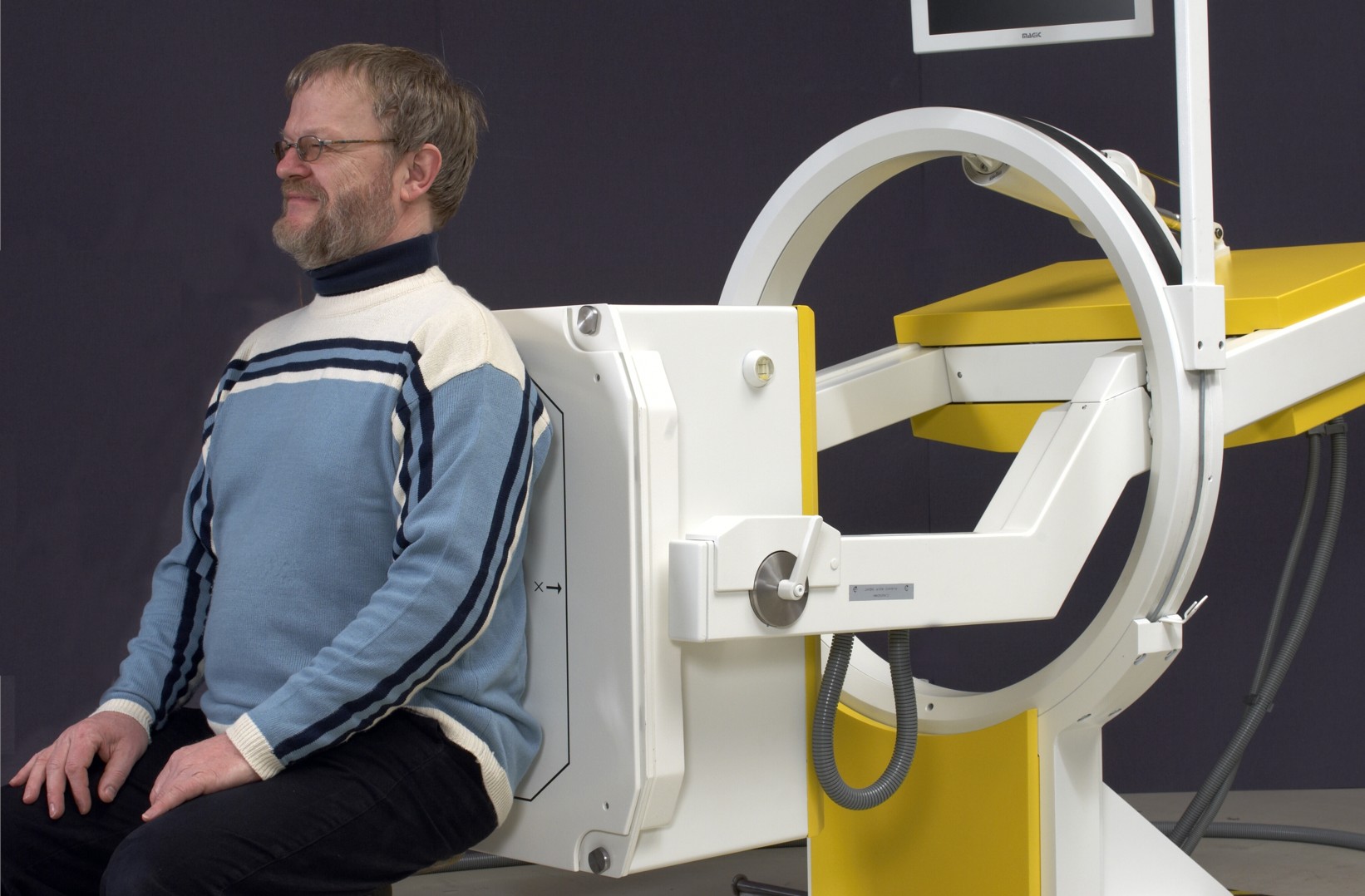

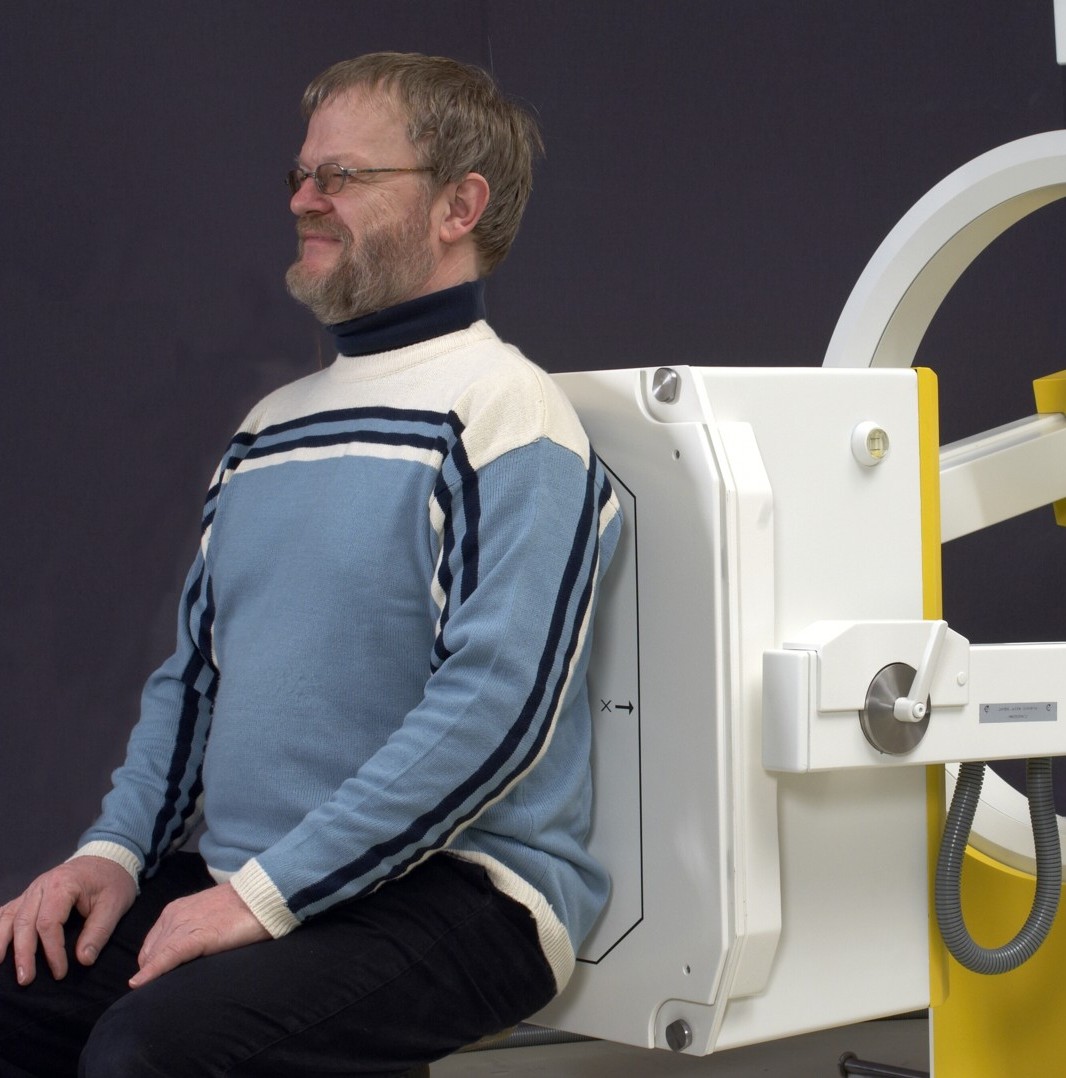

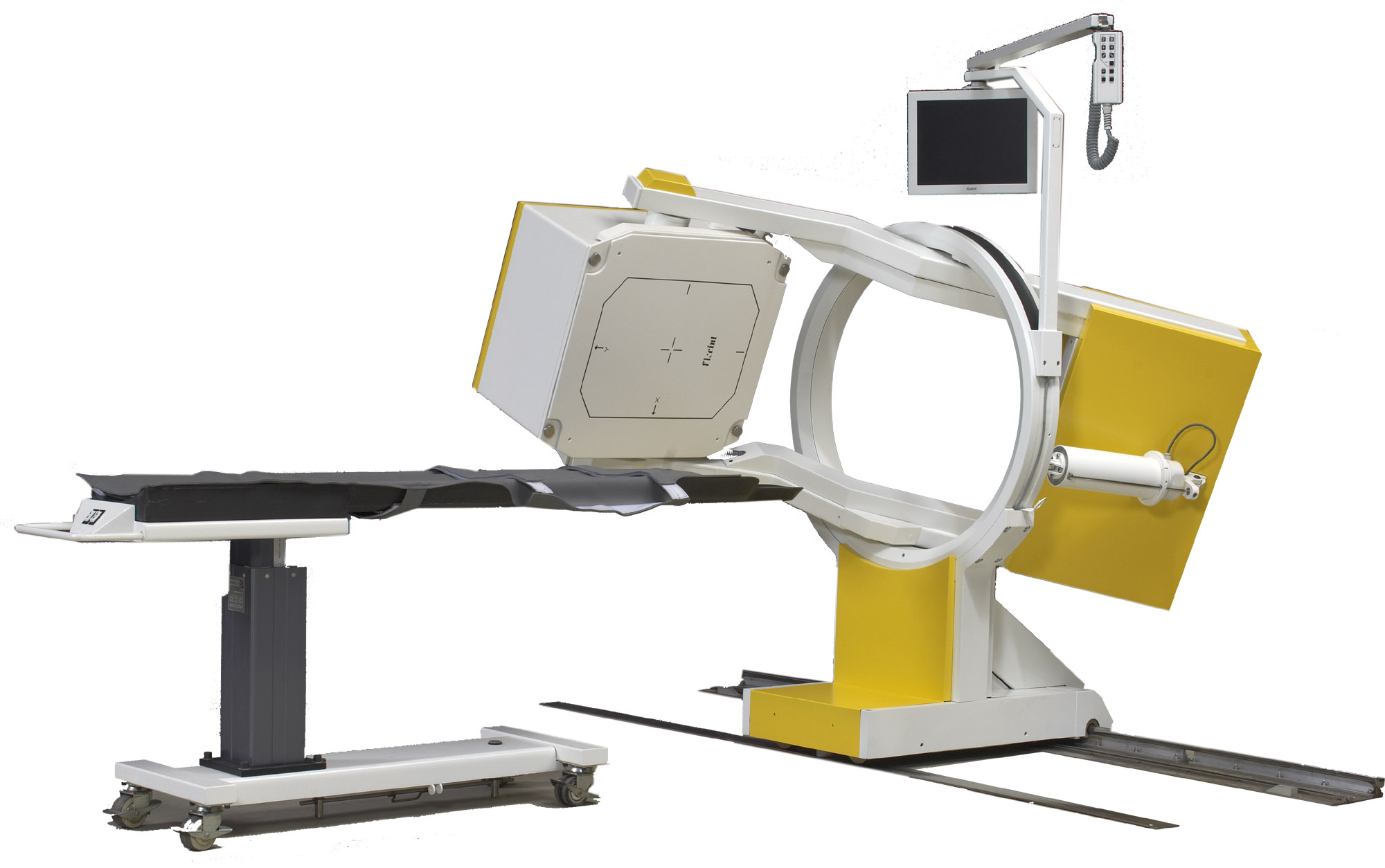

The system consists of the gantry, and one each for full-body patient bed and SPECT-recordings and the Nuclear medicine workstation. Thus it is ensured that you regardless of the recording can perform analysis of your patients. The Galaxy R offers a high precision adjustment and a constant center of rotation with a large swivel range of the detector by the longitudinal axis for the investigation of patients in the standing or sitting position and tilted at an angle detector. The operation of the gantry is Possible by manual operation with pre-program function keys, the adjustment parameters are freely selectable. In comparison to others in the market is characterized by Galaxy R by a very low noise and low power consumption.

The arrangement of the detector without Gantry tunnel will be greatly facilitated the access to the patient.

The detector has a fast high-resolution digitization each individual order. As a result, there is a high degree of stability with an excellent spatial resolution.

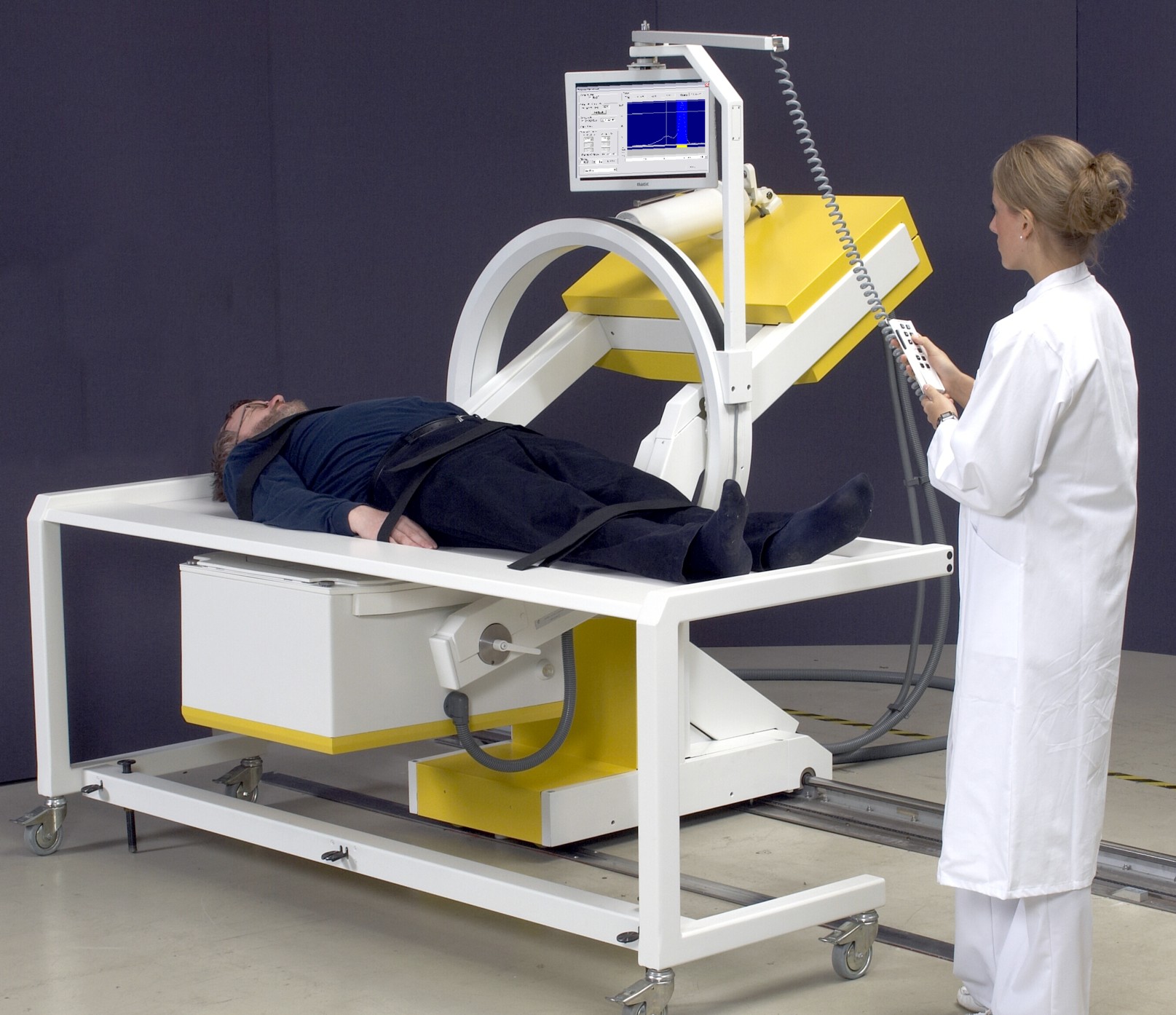

For the better handling the system offers an ergonomically designed hand-held device for optimal control of all gantry motion. A large, color display for monitoring the patient positioning, the current recording and all stand parameter, as well as emergency stop switch at easily accessible locations.
